Custom VisWall™

High Resolution PowerWall 3D Display

Custom VisWalls

Key Features:

– Scalable, extremely high resolutions possible
– Custom configurations available (size and resolution)
– Free-standing or in-wall (e.g. conference room)
– Custom projector positioners for precise alignment
– Size is ideal for small groups of people working together
Multi-use: mono, stereo 3D, tracked stereo 3D (VR)

The VisWall™ product is a scalable high resolution PowerWall display. The tiled display wall is achieved by the highly accurate alignment of multiple projectors. The VisWall allows small groups of people to collaboratively examine incredibly detailed imagery or incredible amounts of information at once. Read more about VisWall Applications.

The VisWall is custom designed and built for each customer according to size and resolution needs. Parameters include individual projector resolution, number of projectors, and individual tile size.

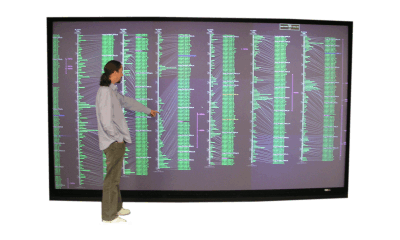

Pictured to the right is the VisWall-T9 from the Center for Comparative Genomics (CCG) at Murdoch University, a high resolution display consisting of 9 precisely aligned projectors.

Have questions? Contact Us.



VisWall-T9

Applications

The VisWall PowerWall enables very high resolution collaborative visualization. Read more about VisWall Applications.

Custom VisWall Configurations

Custom VisWall™ systems are designed and built for each customer according to size and resolution needs. Considerations include:

– Free-standing or in-wall (e.g. conference room)
– Individual projector resolution
– Number of projectors
– Edge butted or blended
– Physical size of individual tiles
– Aggregate resolution
– Aggregate aspect ratio – 4:3, 16:9, other?
– Aggregate physical size
– Throw distance – space behind screen
– Pixel density – pixels per inch
– 3D Active stereo option
– Graphics cluster node configurations
– Graphics cluster networking options
– Cabling types and distances
– Power requirements
– Cooling requirements

Many of these are interrelated. For instance, the depth of the display (the throw distance) is a function of individual tile size and projector model optics. Often, a customer has certain needs (e.g. aggregate resolution) and constraints (e.g. size of room) that help determine the appropriate solution.

Want to know more? Contact us for pre-sales support.

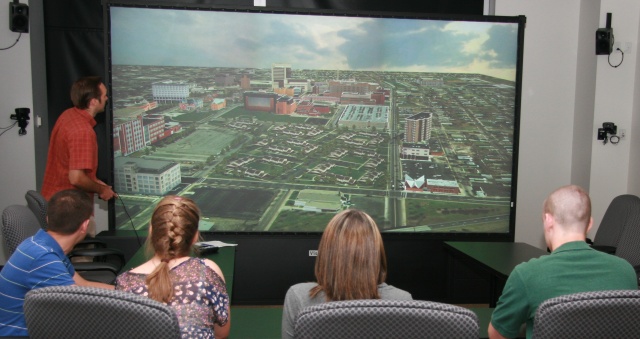

VisWall-T9 with blendingVisWall-9HD (3x3 HD projectors)

VisWall Datasheet



visbox logo
Display Hardware
– High quality rear-projection screen
– Free-standing aluminum support structure or in-wall
– Custom projector positioners for precise alignment
– High quality, bright digital projectors mounted on positioners
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox Inc.
3D Active Stereo
– Active stereo emitter/hub
– 10 pairs of 3D shutter glasses
NVIDIA logo
Image Generator
– One high performance workstation
– Multiple Nvidia Quadro graphics cards
NVIDIA logo
Rendering Cluster for large VisWalls (>16 tiles)
– One high performance workstation (the head console display)
– Cluster of rendering nodes with high-end graphics
– High-speed cluster network interconnect for optimal performance
Option: Edge Blending
– Digital edge blending
– Provides smooth transition between tiles
– Decreases overall resolution due to overlap regions
ART logo
Option: A.R.T. Optical Tracking
– TrackPack4 or ARTTRACK5 system (4 cameras)
– Tracked head, tracked wand (controller)
Blank
Option: Sound System
– Soundbar and subwoofer
Blank
Option: Light Block
– Fabric to enclose free-standing system
– Blocks ambient light and restricts access

Other options are also available.

Contact us for pre-sales support.

Example configurations:
VisWall 4K 4096×2160 ~8.8 MPixels
VisWall T3 4096×2560 ~10.5 MPixels
VisWall-T4 4600×2875 ~13.2 MPixels
VisWall-T9 7680×4800 ~36.9 MPixels
VisWall-T16 10240×6400 ~65.5 MPixels
VisWall-T25 12800×8000 ~102.4 MPixels
      VisWall T9W (in-wall) example                         VisWall T25 example

Other VisWall Models

VisWall 4K: 14.3′ wide, 4096×2160
VisWall T3W, T3: 10′ or 12′ wide, 4096×2560
VisWall T4: 12′ wide, 4600×2875, only 30″ deep
VisWall-LCD: array of LCD panels

VisWall Benefits

The VisWall is ideal for very high resolution collaborative visualization. It is truly scalable in both resolution and size. The VisWall display is custom designed and built according to your size and resolution needs.

Shown below are 3 example configurations for the VisWall:

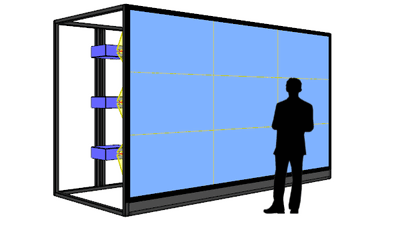

VisWall-9HD medium
High Resolution
Medium Screen Size

Medium VisWall-T9
10′ wide screen, ~5′ deep
7680×4800 (~36.9 Mpixels)
VisWall-9HD large
High Resolution
Large Screen Size

Large VisWall-T9
14′ wide screen, ~6′ deep
7680×4800 (~36.9 Mpixels)

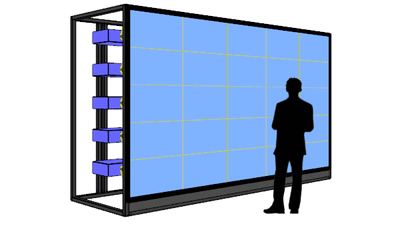

VisWall-25HD large
Ultra Resolution
Large Screen Size

Large VisWall-T25
14′ wide screen, ~5′ deep
12800×8000 (~102.4 Mpixels)
