VisCube™ M4, M5
CAVE Immersive 3D Display
Key Features:
– Low cost front projected CAVE VR systems
– Ultra compact footprint: fits into very small spaces
– Free-standing: can be placed anywhere in a room
– Multi-screen Immersion: 4 or 5 screens
– Extra large 12′ wide front wall allows more viewers
– 1920×1200 resolution projectors
– Laser light source: stable color, no lamp changes
– Multi-use: mono, stereo 3D, tracked stereo 3D (VR)
– Custom configurations available, see Services page
The VisCube M4 and M5 are ultra compact. They can be installed in very small spaces.
The VisCube M4 and M5 make use of high quality ultra-short throw optics. The result is excellent image quality. Users do not cast a shadow until they are within an arm’s length from the screen. Getting any closer is not very useful, the system provides the same experience as a rear projected CAVE.
In addition to the standard VisCube models, Visbox Inc. is also available for custom hardware and software development for customers with special needs. Learn more about our capabilities on the Services page.
Have questions? Contact us.
VisCube M4, M5 Benefits
The VisCube M4 and M5 are ideal for small group 3D collaboration.
Wireless Optical Tracking
Robust, wireless optical tracking for head and wand (controller)
The VisCube M4 and M5 fit into very small spaces.
Turn-key VR system
Fully integrated, including sound system and control console.
Multi-Screen Applications
The VisCube provides increased immersion using multiple display surfaces surrounding the user. The floor projection allows users to move in and around virtual objects. Read more about immersive 3D applications on the Immersive 3D Applications page. For custom VisCube configurations, see the Services section.
VisCube M4, M5 Datasheet
VisCube M4
– Resolution of front, floor: 1920×1200
– Resolution of side walls: 1280×1200
– Screen size of front, floor: 140″w x 87.5″h (3.56m x 2.22m)
– Screen size of side walls: 94″w x 87.5″h (2.39m x 2.22m)

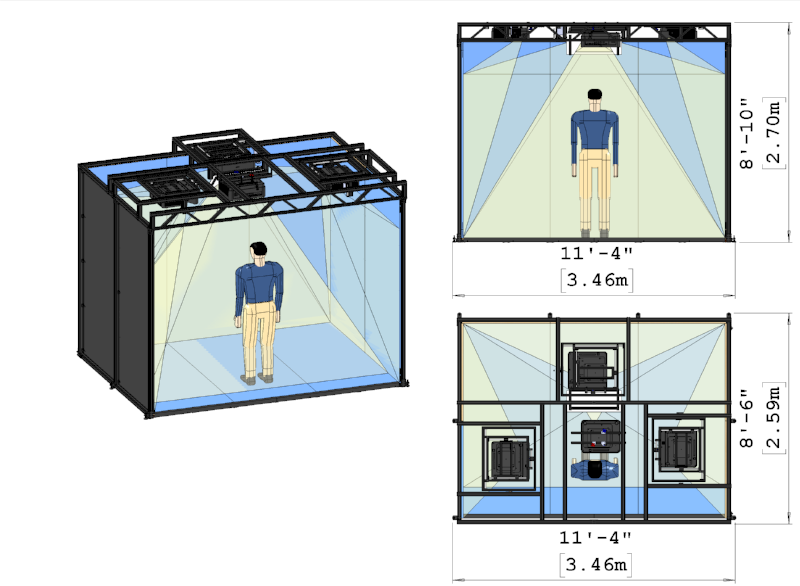

– Footprint: 12.5’w x 8.3’d x 9.7’h (3.81m x 2.55m x 2.97m)
Includes:
– 4 active stereo projectors (1920×1200)
– Laser light source: stable color, no lamp changes
– Free-standing structure
– Projection floor surface
– Custom projector positioners
– Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
– Resolution of walls: 1920×1200
– Resolution of floor: 1920×1920
– Screen size of walls: 140″w x 87.5″h (3.56m x 2.22m)
– Screen size of floor: 140″w x 140″h (3.56m x 3.56m)
– Footprint: 12.5’w x 12.5’d x 10.8’h (3.81m x 3.81m x 3.26m)
Includes:
– 6 active stereo projectors (1920×1200)
– Laser light source: stable color, no lamp changes
– Free-standing structure
– Projection floor surface
– Custom projector positioners
– Active Stereo and 10 pairs of shutter glasses
– Video, projector control, projector sync, and power cabling
– Installed and calibrated on-site by Visbox, Inc.
– TrackPack4 (4 cameras)
– Tracked head, tracked wand (controller)
– Graphics workstation with NVIDIA Quadro graphics
– 19″ rack and all cabling
– Control console stand with monitor/keyboard/mouse
– Software demos, applications, and development libraries
– Soundbar and subwoofer
– Surround speakers: 5 satellite and subwoofer (5.1)
– Surround system processor/amplifier
Contact us for pre-sales support.
Other VisCube Models
VisCube M4-6K: 14′ wide, 6144×3240
VisCube C4-4KU: 12′ wide, 3840×2400
VisCube C4-T2X: 10′ wide, 4096×4096
VisCube C4-T3X: 13′ wide, 6000×4096
VisCube LED: DirectView LED, bright, scalable
Custom: custom screen size, resolution
